Equipment > S-TCC series super concentrated classification cyclone

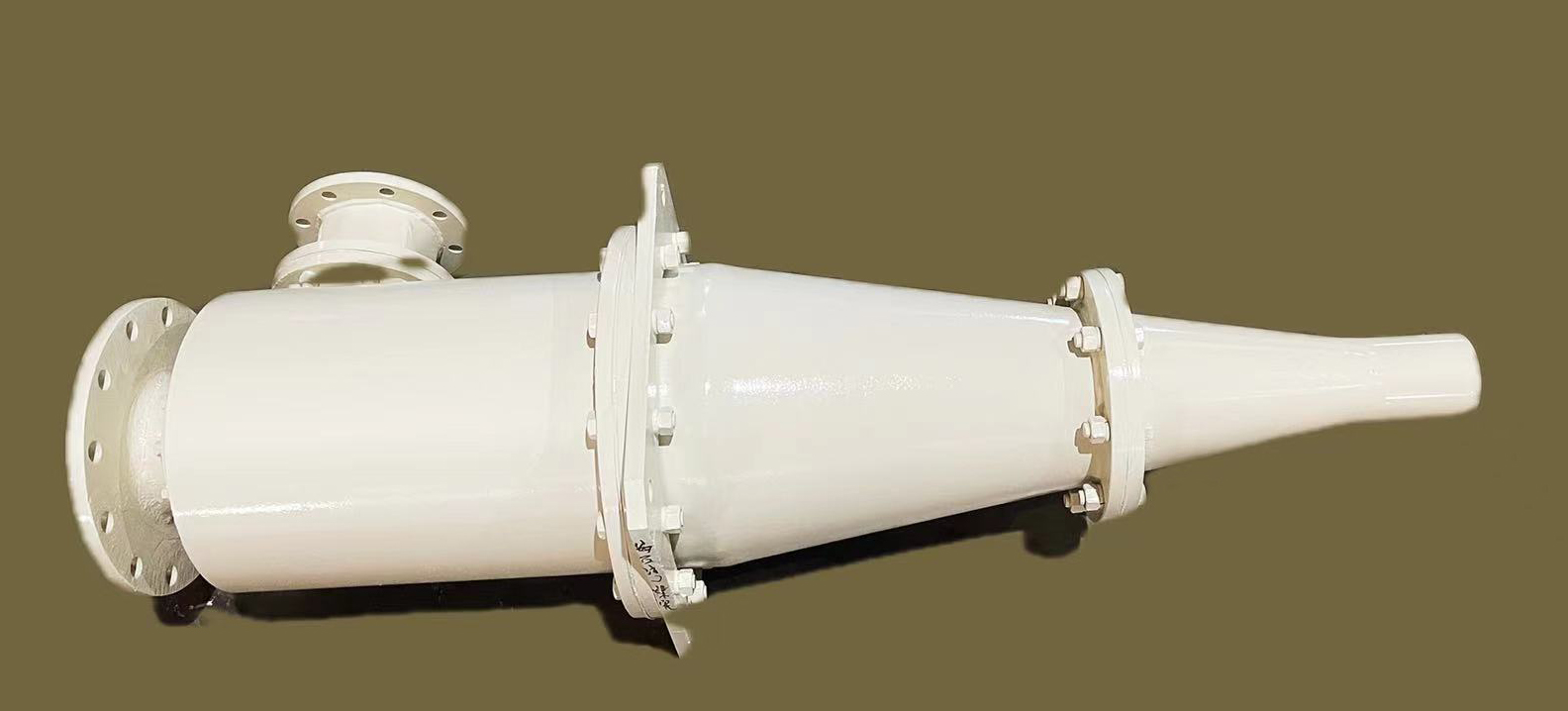

S-TCC series super concentrated classification cyclone

  • 1(1).jpg
  • 2.jpg
  • 微信圖片_20231220183356_副本.jpg
  • 微信圖片_20231220183353_副本.jpg
  • 微信圖片_20231220183345_副本.jpg
  • 微信圖片_20231220183338_副本.jpg
  • 1(1).jpg
  • 2.jpg
  • 微信圖片_20231220183356_副本.jpg
  • 微信圖片_20231220183353_副本.jpg
  • 微信圖片_20231220183345_副本.jpg
  • 微信圖片_20231220183338_副本.jpg

The S-TCC series super concentration and classification cyclone is mainly used for the concentration and classification of solid minerals in slurry smaller than 3mm. Its main characteristics are strong processing capacity and low energy consumption. The main technical features of the S-TCC series super concentration classification cyclone are shown in the table below.

Table Specification and model of S-TCC series super concentrated classification cyclone

型號

工作壓力
(MPa)

處理能力
(m3/h)

入料粒度
(mm)

外形尺寸
(mm)

重量
kg)

S-TCC430S

0.08~0.16

85~100

3

1490× 640× 470

370

S-TCC430M

0.08~0.16

100~130

3

1490× 640× 470

370

S-TCC430L

0.08~0.16

130~160

3

1490× 640× 470

370

S-TCC500S

0.1~0.18

120~140

3

1770× 720× 530

390

S-TCC500M

0.1~0.18

140~185

3

1770× 720× 530

396

S-TCC500L

0.1~0.18

185~230

3

1770× 720× 530

390

S-TCC570S

0.12~0.20

180~210

3

1985× 775× 580

525

S-TCC570M

0.12~0.20

210~275

3

1985× 775× 580

530

S-TCC570L

0.12~0.20

275~340

3

1985× 775× 580

530

S-TCC640S

0.15~0.23

225~265

3

2200× 820× 630

690

S-TCC640M

0.15~0.23

265~355

3

2160× 820× 630

695

S-TCC640L

0.15~0.23

355~440

3

2100× 820× 630

695

S-TCC710S

0.17~0.26

315~370

3

2360× 840× 665

743

S-TCC710M

0.17~0.26

370~480

3

2360× 840× 665

755

S-TCC710L

0.17~0.26

480~610

3

2360× 840× 665

763

S-TCC780S

0.19~0.28

400~480

3

2630× 920× 725

928

S-TCC780M

0.19~0.28

480~640

3

2550× 920× 725

928

S-TCC780L

0.19~0.28

640~785

3

2550× 920× 725

943

S-TCC850S

0.20~0.31

550~650

3

2805× 990× 765

1150

S-TCC850M

0.20~0.31

650~870

3

2735× 990× 765

1160

S-TCC850L

0.20~0.31

870~1050

3

2805× 990× 765

1160

S-TCC920S

0.22~0.34

700~830

3

3070× 1023× 820

1285

S-TCC920M

0.22~0.34

830~1100

3

3000× 1023× 820

1305

S-TCC920L

0.22~0.34

1100~1370

3

3000× 1023× 820

1315

S-TCC1000S

0.24~0.37

900~1060

3

3290× 1090× 870

1425

S-TCC1000M

0.24~0.37

1060~1420

3

3220× 1090× 870

1430

S-TCC1000L

0.24~0.37

1420~1750

3

3220× 1090× 870

1461
